Inomed Stockert Neuro N50. A versatile
RF lesion generator and stimulator for
countless applications and many uses
Multigen RF lesion generator .
15-JANUARY-2025 YUSRA
ABDEL- MUNIM ABDEL-LATIF 62 YEARS SPONDYLOLISTHESIS L4-5 WITH
FRACTURE OF LEFT L2-3 FACET JOINT WITH SCOLIOTIC DEFORMITY.
Anamnesis
The patient was operated by our team
13-September-2015 for spondylolisthesis L3-4
with stenosis L2-3 and L3-4, using XIA 3 Stryker
transpedicular screws. The patient was doing
well until she came to the clinic
12-January-2025 telling that she got LBP for 3
months with left sciatica with numbness right
lower limb for 1 week with inability to walk
more than 50 meters.
On examination, the patient is in agonizing
pain, limping with exaggerated scoliotic stance. SLRS was
55
degrees right side with pain and 60 degrees left
side with less pain. There is weak dorsiflexion
both feet 4/5.
The patient was sent for investigations
and MRI done 12-January-2025 showing
spondylolisthesis L4-5. Dynamic studies
confirmed the GI-II spondylolisthesis L4-5.

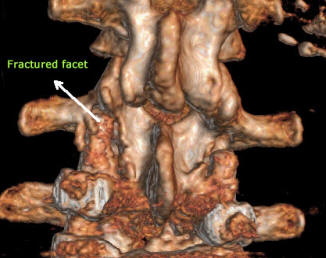

There is scoliotic deformity at L2-3 with
fracture of left L2-3 facet joint .
Dynamic studies revealed spondylolisthesis L4-5
with the the old screws at L3-4 in position.
There is scoliosis at the level of the fracture. Cardio
consultation revealed was uneventful.
The old construct was
exposed and the cross connector and rods removed. Transpedicular fixation L4-5 and
exploration of the left L2-3 facet was involved
in fracture, for what
using Stryker XIA 3 system with cross connector 43 mm and
2 monoaxial screws 6.5x4.0 mm applied to L5 and
2 polyaxial screws 6.5x45 mm to left non
fractured pedicle of L2. Insertion of the screw
to the left side was unacceptable, for what the
polyaxial screw was inserted to the left L1
pedicle. Before
applying the rods, using MultiGen with 7 Volts
monopolar motor stimulation did not show
any motor response confirming that the screws
are away from neural structures. The left rod
part between L1-3 was distracted 5 mm to
achieve reduction and correction of the involved
segment. Routine closure of the
wound. The power of both feet improved dramatically and she was sent to the
ward.
MultiGen
Stryker XIA 3 polyaxial screw.
FOLLOW UP
Too early now.
Comments
The patient mostly suffered injury to the
spine, causing spondylolisthesis of L4-5 and fracture of
left L2-3 facet joint and pedicle.
This is the 279th case using the MultiGen. This procedure regained routine acceptance.
It became a usual part of the spine and peripheral nerves
surgery. Click here for
reference. The patient showed improvement of
the motor stimulation after BPRF, the sciatic pain
disappeared and dramatic improvement of the power of the
foot.
With accumulation of data, it became
clear that the irritated nerve with aberrant currents
running in the C fibers up, not only causing no change or elevation of
the required voltage to achieve motor response, but they could cause the preoperative
weakness. Ablation of such currents results in facilitation
of the motor response and improvement of function with
disappearance of pain.
It is unclear why the roots have several
motor response with different patients, despite the fact
that the neurological status was the same and the anesthesia
protocol also the same.
It could be that the nerve is recovering
minute by minute after decompression and this can explain
why the motor conductivity is improving after the BPRF
application, which require 5 minute session in most cases.
After the 172d case, the elevation of
motor stimulation above 5 V was abandoned to avoid delayed
dural tear with subsequent CSF leak, which take place at the
contact at the lower electrode shaft with the dura below or
above the
level of the axilla.
Before doing motor stimulation in
peripheral nerve surgery with tourniquet. always release the
tourniquet before performing motor stimulation.
